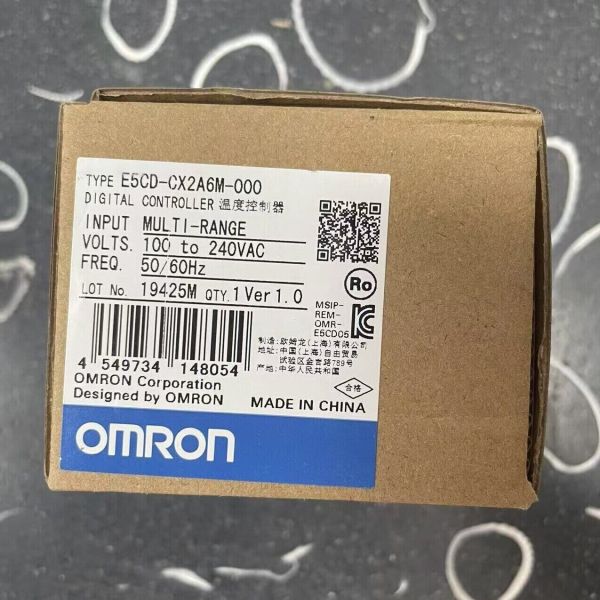

OMRON E5CD-CX2A6M-000 | 48x48mm PID Controller, 4-20mA Output, 100-240V AC
OMRON E5CD-CX2A6M-000 1/16 DIN temperature controller. Universal input (TC/RTD), 4-20mA analog output, PID control, 100-240V AC supply. IP66 front panel, 45x45mm cutout.
Product Overview
The OMRON E5CD-CX2A6M-000 is a 1/16 DIN (48 x 48 mm) digital temperature controller from the E5CD series. It features a universal input accepting thermocouples, RTDs, and DC voltage/current signals, with a 4-20 mA linear current output for continuous control. Powered by 100-240 V AC, it supports PID control with auto-tuning and is designed for panel mounting in industrial heating processes.
Technical Specifications (Control & I/O)
| Parameter | Specification |
| Model | E5CD-CX2A6M-000 |
| Input Type | Universal (TC Types B, E, J, K, L, N, R, S, T, U, W / Pt100 RTD / 0-10V, 0-20mA) |
| Input Range | -200 to 2300 °C (depending on sensor type) |
| Control Output | Linear Current Output (4 to 20 mA DC) |
| Control Method | PID (Proportional, Integral, Derivative) with Auto-tuning |
| Auxiliary Output | None (Standard) |
Technical Specifications (Physical & Electrical)
| Parameter | Specification |
| Panel Cutout | 45 x 45 mm (1/16 DIN) |
| Housing Dimensions | 48 x 48 mm |
| Power Supply | 100 to 240 V AC (50/60 Hz) |
| Display | Dual 4-digit LCD (PV: 14.9 mm, SV: 7.1 mm) |
| Front Protection | IP66 (Dust-tight, Protected against water jets) |
| Terminal Type | Screw Terminals |
| Ambient Temperature | -10 to +55 °C (Operational) |
Key Features
-
Universal Input Flexibility: Supports a wide range of temperature sensors (thermocouples, RTD) and analog signals without hardware changes.
-
Analog Control Output: 4-20 mA current output for direct control of proportional valves or thyristor units.
-
Advanced PID Algorithm: Built-in auto-tuning (AT) for optimal response to process changes and minimal overshoot.
-
High Visibility Display: Dual-color LCD with large Process Value (PV) digits for clear readability at a distance.
Applications
-
Plastics Processing: Injection molding machine barrel temperature control.
-
Packaging Machinery: Heat sealing jaw temperature regulation.
-
Industrial Ovens & Furnaces: Process heating and environmental chamber control.
-
HVAC & Energy Management: Water temperature control in heating systems.
